How do I measure for a Custom Big Green Egg Cover (Nest + Handler, Angled Egg Mates)?

This guide explains how to measure your Big Green Egg on its nest with handler and angled Egg Mates for a custom-fitted Kuvr® Big Green Egg Cover, including each required measurement, where to take it, and how to record it accurately. There are 10 measurements to take, labelled A to J.

The measurements

A — Total width

The overall width across the whole unit including the angled Egg Mates, measured at the widest point.

B — Total depth

The overall front-to-back depth at the deepest point, measured from directly above.

C — Total height

The vertical height from the floor up to the very top of the chimney cap.

D — Height to top of Egg Mate

The vertical height from the floor up to the top surface of the Egg Mates.

E — Diameter (width) of top smoke exit

The width across the metal chimney cap at the top of the lid.

F — Width of left Egg Mate

The width of the left angled Egg Mate, across its shorter dimension.

G — Depth from rear of Egg Mate to rear of Egg

The distance from the rear edge of the Egg Mate back to the rear edge of the Egg.

H — Depth of Egg Mate

The front-to-back length of an Egg Mate, from its front edge to its rear edge.

I — Width of right Egg Mate

The width of the right angled Egg Mate, across its shorter dimension.

J — Distance between Egg Mate front corners

The straight-line distance between the front outer corners of the two angled Egg Mates.

Frequently asked questions

Do I include the chimney cap in the height?

Yes. The total height is measured to the very top of the metal chimney cap on the lid, with the lid closed.

Which guide should I use?

Choose the guide that matches your setup — the Egg on its own, on a nest with handler, on a nest with straight or angled Egg Mates, or built into a table. If you’re between options, send photos and we’ll confirm the right one.

Should I measure the metal bands and hinge?

Yes. For the widths, measure to the outermost points — including the metal bands, the rear hinge and any side handle — so the cover clears them.

Can I measure in inches?

Yes. Measure in centimetres, inches, or metres — you choose your preferred unit when you configure the cover. Keep the same unit throughout.

Downloads

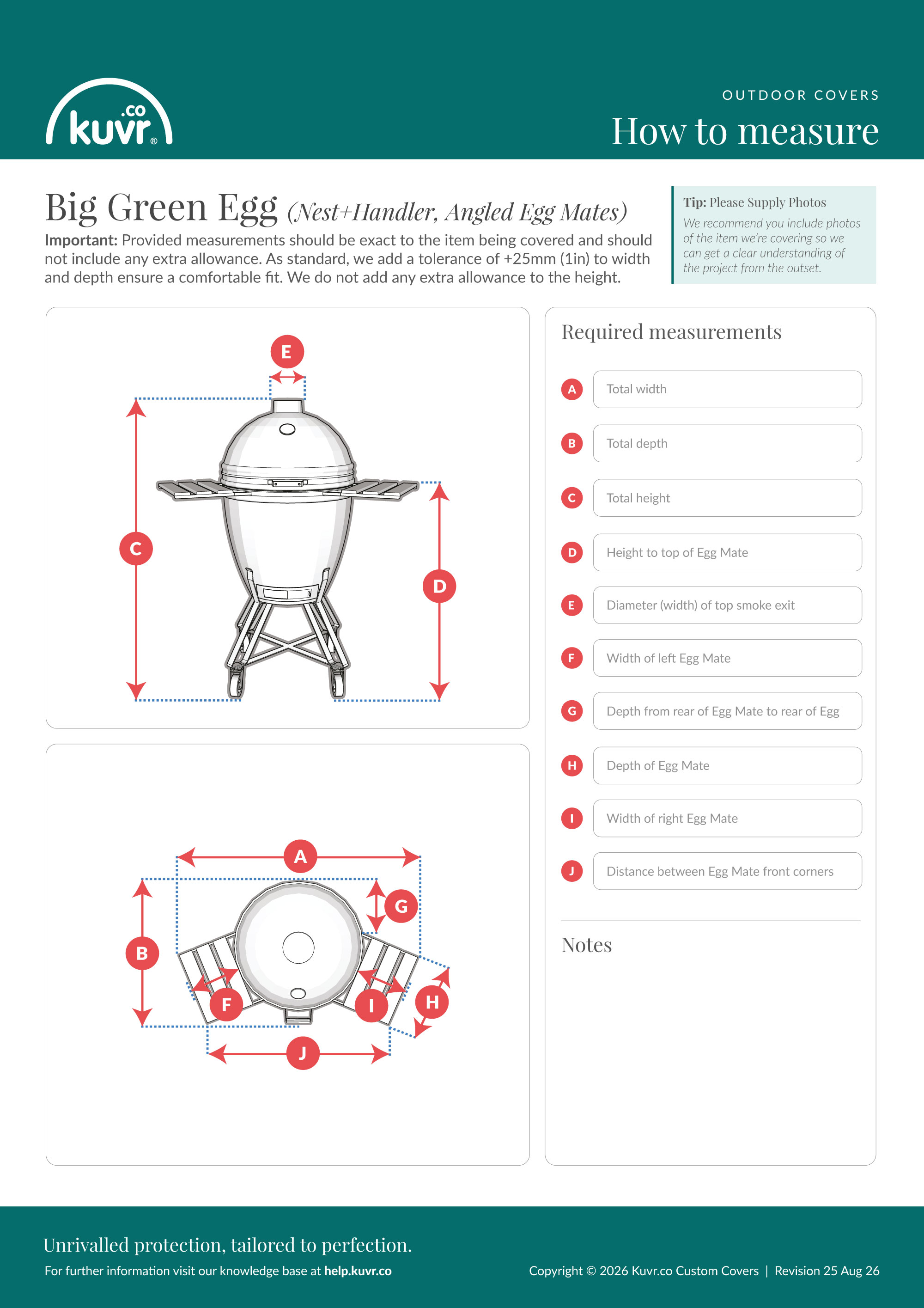

Download the PDF measuring guide
Download the JPG measuring guide
