How do I measure for a Custom Outdoor Kitchen Cover (L-Shape, Grill Right)?

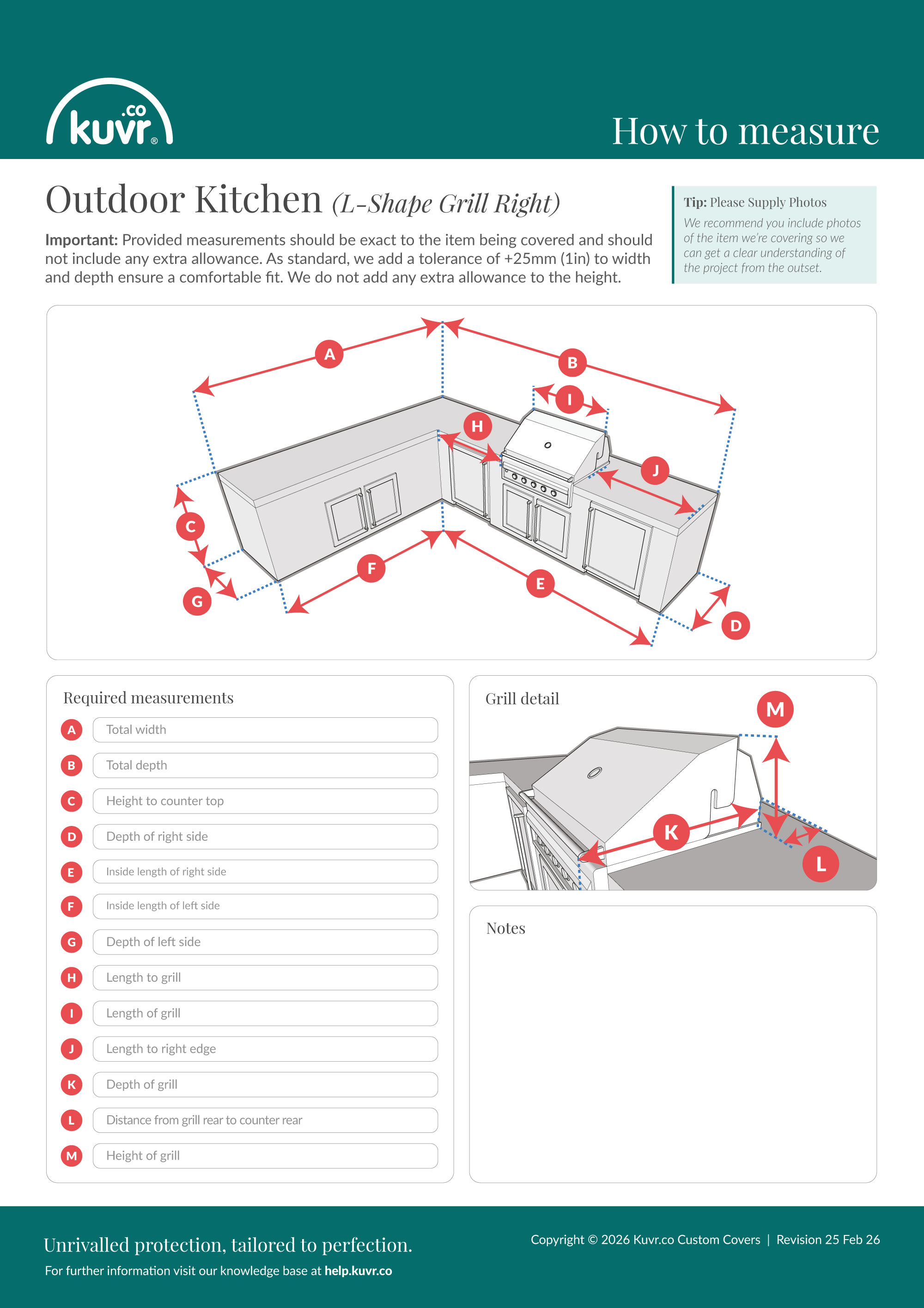

This guide explains how to measure your L-shaped outdoor kitchen with the grill on the right for a custom-fitted Kuvr® Outdoor Kitchen Cover, including each required measurement, where to take it, and how to record it accurately. There are 13 measurements to take, labelled A to M.

The measurements

A — Total width

This is the total width of the kitchen. Measure straight across from side to side, at the widest part.

B — Total depth

This is the total depth of the kitchen. Measure from front to back.

C — Height to counter top

This is the vertical height from the floor to the top of the counter. Measure vertically from the floor, keeping the tape straight and plumb.

D — Depth of right side

This is the depth of the right-hand section. Measure from front to back.

E — Inside length of right side

This is the inside length of the right-hand section. Measure in a straight line between the two points, parallel to the ground.

F — Inside length of left side

This is the inside length of the left-hand section. Measure in a straight line between the two points, parallel to the ground.

G — Depth of left side

This is the depth of the left-hand section. Measure from front to back.

H — Length to grill

This is the length from the left edge to the grill. Measure in a straight line between the two points, parallel to the ground.

I — Length of grill

This is the width of the grill unit. Measure in a straight line between the two points, parallel to the ground.

J — Length to right edge

This is the length from the grill to the right edge. Measure in a straight line between the two points, parallel to the ground.

K — Depth of grill

This is the depth of the grill unit. Measure from front to back.

L — Distance from grill rear to counter rear

This is the distance from the rear of the grill to the rear of the counter. Measure in a straight line between the two points, parallel to the ground.

M — Height of grill

This is the height of the grill unit. Measure vertically from the floor, keeping the tape straight and plumb.

Frequently asked questions

How do I handle taps, grills or parts that stick out?

Measure to the outermost point of any fixed feature, such as a tap spout, grill lid or handle, so the finished cover clears it. Note anything removable in your order.

Should I measure with the grill lid open or closed?

Measure with the lid closed, to the highest fixed point, unless you specifically want the cover to fit over the lid raised.

Do you cover both built-in and freestanding outdoor kitchens?

Yes. The cover is cut to the dimensions you supply, so it fits built-in islands and freestanding units alike.

Downloads

Download the PDF measuring guide
Download the JPG measuring guide
